Product Parameters
Product: Polyvinyl Chloride Resin
Chemical Formula: (C2H3Cl)n
Cas No: 9002-86-2
Print Date: May 10th, 2020
Description
Features thermo plasticity, being insoluble into water, gasoline and alcohol, swelled or dissolved into ether, ketone, chlorinated aliphatic hydrocarbons, and aromatic hydrocarbon, high resistance to corrosion, and good dielectric property.
Applications
Widely used in pvc pipes, window profiles, films, sheets, tubes, shoes, fittings, etc.
Packaging

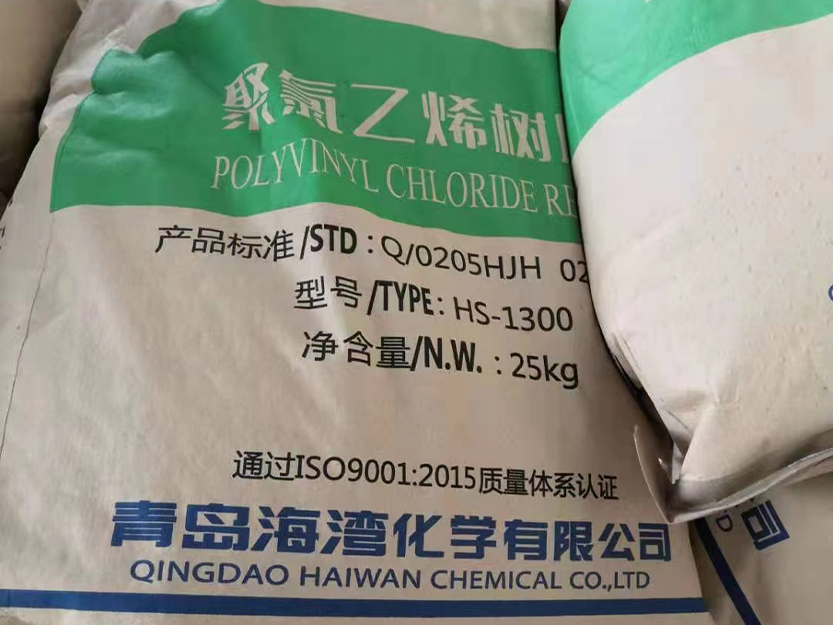

In 25kg kraft bag or 1100kg jumbo bag.
|
ITEMS |
HS-1300 |
HS-1000R |
HS-800 |
HS-700 |
||||||||||||||||||||
|
Viscosity(ml/g) |
127-135 |
107-118 |
87-95 |
73-86 |
||||||||||||||||||||
|
K value |
71-72 |
66-68 |
60-62 |
55-59 |
||||||||||||||||||||
|
Impurity particle number ≤ |
16 |
16 |
16 |
16 |
||||||||||||||||||||
|
Volatiles(incl.water ) %≤ |
0.30 |
0.30 |
0.30 |
0.30 |
||||||||||||||||||||
|
Bulk density g/ml ≥ |
0.48 |
0.53 |
0.53 |
0.53 |
||||||||||||||||||||
|
Sieve ratio% |
0.25mm ≤ |
1.0 |
1.0 |
2.0 | 2.0 | |||||||||||||||||||
| 0.063mm ≥ |
98 |
98 |
97 | 97 | ||||||||||||||||||||
|
“Fish eye” number unit /400cm2 ≤ |
10 |
10 |
20 | 20 | ||||||||||||||||||||
|
100g resin plasticizer absorbtion g ≥ |
28 |
19 |
16 | 14 | ||||||||||||||||||||
|
Whiteness(after 160℃10min)≥ |
80 |
80 |
80 | 80 | ||||||||||||||||||||
|
Residual VCM ppm ≤ |
1.0 | 1.0 | 1.0 | 1.0 | ||||||||||||||||||||
Some Formular Suggestions
PVC wire box
PVC 100kg,
Light Calcium 30kg,
Composite Lead Salt Stabilizer 3.6kg,
ACR 2.0kg,
DOP 3kg,
Stearic Acid 1.0kg,
Paraffin 0.3kg,
PE Wax 0.35kg,
Brightener 0.02kg,
Titanium Dioxide 1.6kg.
Medical PVC plastic pipe
PVC 50kg,
Tetraoctyl Pyromellitic Acid 35.52kg,
Epoxy Soybean Oil 1.89kg,
Stearic Acid 0.15kg,
CA / Za Environmental Stabilizer 1.0kg,
Glycerol 0.048kg,
PE Wax 0.1kg.
PVC transparent pipe
Formular1(Hose):
PVC 100kg,
DOTP 45kg,
Epoxy Soybean Oil 5kg,
Stearic Acid 0.4kg,
PE Wax 0.35kg,
Organic Tin 1.5kg.
Formular2(Hard pipe):
PVC 100kg,
Organotin 1.4kg,
MBS 5.0kg,
ACR (40) 0.6kg,
Internal Lubrication 60 0.6kg, 74 / 70s 0.5kg.

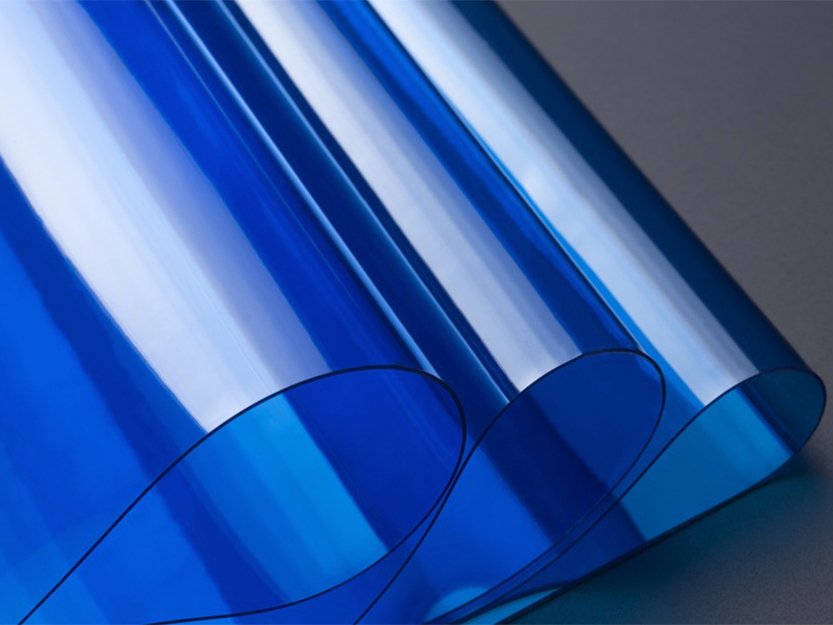

PVC transparent sheet
PVC (SG-7 / 8) 100kg,
Organotin 0.8-1.2kg,
ACR (40) 0.8kg,
MBS 2-4, ok-60 0.8, 70s 0.5kg,
Fluorescent Brightener 0.002kg,
Ultramarine 0.001kg.
PVC building formwork
Formular1:
PVC (SG-8) 50kg,
Light Calcium 25kg,
Composite Lead Salt Stabilizer 2.3kg,
White Foaming Agent 0.45kg,
Foaming Agent AC 0.3kg,
Wood Flour 10kg,
PVC Recycled Material 20kg,
Foaming Regulator (80) 4kg,
CPE 2kg,
Stearic Acid 0.35kg,
PE Wax 0.25kg.
Formular2:
PVC 75kg,
Light Calcium 35kg,
Recycling 50kg,
Foaming Board Waste 20kg,
Lead Salt Composite Stabilizer 3.6kg,
Foaming Regulator (533) 9.5kg,
PE Wax 0.55kg,
Oa6 or 316a 0.5kg,
AC Foaming Agent 0.3kg,
White Foaming Agent NC 0.8kg.
