PVC Resin S-1000 K66-68 Pipe Grade

Short Description:


  • FOB Price: 700-900USD/MT
  • Port: Qingdao
  • MOQ: 17MT
  • CAS No: 9002-86-2
  • HS Code: 390410
  • Payment: TT, LC
  • Product Detail

    Product Parameters

    Product: Polyvinyl Chloride Resin
    Chemical Formula: (C2H3Cl)n

    Cas No: 9002-86-2
    Print Date: May 10th, 2020

    Description

    Features thermo plasticity, being insoluble into water, gasoline and alcohol, swelled or dissolved into ether, ketone, chlorinated aliphatic hydrocarbons, and aromatic hydrocarbon, high resistance to corrosion, and good dielectric property.

    Applications

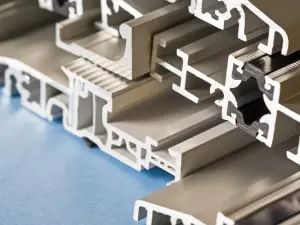

    Widely used in pvc pipes, window profiles, films, sheets, tubes, shoes, fittings, etc.

    Packaging

    In 25kg kraft bag or 1100kg jumbo bag.

    ITEMS

    S-1300

    S-1000

    S-800

    S-700

    Viscosity(ml/g)

    127-135

    107-118

    87-95

    73-86

    K value

    71-72

    66-68

    60-62

    55-59

    Impurity particle number ≤

    16

    16

    16

    16

    Volatiles(incl.water ) %≤

    0.30

    0.30

    0.30

    0.30

    Bulk density g/ml ≥

    0.48

    0.53

    0.53

    0.53

    Sieve ratio%

    0.25mm ≤

    1.0

    1.0

    1.0

    1.0

    0.063mm ≥

    98

    98

    97

    97

    "Fish eye" number unit /400cm2 ≤

    10

    10

    20

    20

    100g resin plasticizer absorbtion g ≥

    26

    19

    16

    14

    Whiteness(after 160℃10min) ≥

    80

    80

    80

    80

    Residual VCM ppm ≤

    1.0

    1.0

    1.0

    1.0

    Some Formular Suggestion

    PVC gusset plate

    Formular 1:

    PVC 100kg,
    Heavy Calcium 220kg,
    PE Wax 1.2kg,
    Stearic Acid 0.5kg,
    DOP 4.0kg,
    CPE 8.0kg,
    Lead Salt Composite Stabilizer 5.2kg,
    Titanium Dioxide 3.0kg,
    Fluorescent Brightener 0.02kg.

    Formular 2:

    PVC 100kg,
    Heavy Calcium 200kg,
    Lead Salt Composite Stabilizer 5.6kg,
    Paraffin 1.2Kkg,
    Stearic Acid 2.4kg,
    DOP 3.0kg,
    CPE 8.0kg,
    Titanium Dioxide 3.0kg,
    Fluorescent Brightener 0.03kg.

    Formular 3:

    PVC 100kg,
    Heavy Calcium 250kg,
    Lead Salt Composite Stabilizer 5.6kg,
    Paraffin 1.4kg,
    Stearic Acid 2.4kg,
    DOP 3.0kg,
    CPE 8.0kg,
    Grinding Material 40kg.

    PVC floor:

    Formular 1(Calendered floor leather):

    PVC 100kg,
    Heavy Calcium 60kg,
    Lead Salt Composite Stabilizer 2.5kg,
    PE Wax 0.25kg,
    ACR (100) 1-2kg,
    Stearic Acid 0.3kg,
    DOP 32kg,
    Titanium Dioxide 1.0kg,
    Fluorescent Brightener 0.05kg,
    Ultramarine 0.18kg.

    Formular 2 (Floor cloth):

    PVC 50kg,
    Rare Earth Stabilizer 2.0kg,
    Paraffin 0.6kg,
    Magnesium Hydroxide 16kg,
    Light Calcium Carbonate 15kg,
    Dop 35kg,
    Chlorinated Paraffin 15kg,
    Stearic Acid 0.6kg,
    Appropriate Amount Of Toner.

    Formular 3: (Floor base material)

    PVC 75kg,
    Light calcium 85kg,
    Calcium Zinc Composite Stabilizer 4.2kg,
    Foaming Regulator (80) 8kg,
    AC Foaming Agent 0.25kg,
    White Endothermic Foaming Agent 0.6316a 0.4kg, 60 0.70kg,
    PE wax 0.55kg,
    Recycling 40kg;

    PVC resin tile

    Formular 1:

    Plastic Steel Powder 125kg,
    Light Calcium 25kg,
    Stabilizer 3.0kg,
    CPE 5kg,
    Stearic Acid 0.5kg,
    PE Wax 0.5kg.

    Formular  2:

    PVC 100kg,
    Lead Salt Composite Stabilizer 4.0kg,
    CPE 5kg,
    Stearic Acid 1.4kg,
    Paraffin 0.4kg,
    PE Wax 0.5kg.

    PVC profile

    Formular 1:

    PVC (SG-5) 100kg,
    Composite Lead 4kg,
    Stearic Acid 0.3kg,
    PE Wax 0.25kg,
    ACR (400 or 90s) 2kg,
    CPE (35%) 10kg,
    Active Light Calcium 15kg,
    Titanium Dioxide 2.5kg.

    Formular  2:

    PVC (SG-5) 100kg,
    Calcium Zinc Stabilizer 4.2kg,
    Stearic Acid 0.3kg,
    Paraffin 0.3kg,
    Monoglyceride 0.3kg,
    ACR (801 or 90s) 2kg,
    CPE (35%) 10kg,
    Light Calcium 40kg,
    Titanium Dioxide 4.5kg,
    Ultramarine 0.02kg,
    Brightener 0.012kg.
